InVivoMAb anti-mouse/human/rat CD47 (IAP)
Catalog #BE0283
Product Citations:
28
Clone:
MIAP410
Reactivities:
Mouse, Human, Rat
Product Details
The MIAP410 monoclonal antibody reacts with mouse CD47 otherwise known as integrin-associated protein (IAP). CD47 is an approximately 50 kDa glycosylated five transmembrane protein that is ubiquitously expressed by both hematopoietic cells such as T and B lymphocytes, monocytes, platelets and erythrocytes and non-hematopoietic cells. CD47 is involved in a range of cellular processes, including apoptosis, proliferation, adhesion, and migration. Furthermore, it plays a key role in immune and angiogenic responses. CD47 is a receptor for thrombospondin-1 (TSP-1), a secreted glycoprotein that plays a role in vascular development and angiogenesis. CD47 Is has been found to be overexpressed in many different tumor cells. Because of this, anti-CD47 monoclonal antibodies have been proposed and studied as a therapeutic treatment for human cancers. The MIAP410 antibody has been shown to neutralize CD47 in vivo and in vitro.Specifications
| Isotype | Mouse IgG1, κ |
|---|---|
| Recommended Isotype Control(s) | InVivoMAb mouse IgG1 isotype control, unknown specificity |
| Recommended Dilution Buffer | InVivoPure pH 7.0 Dilution Buffer |
| Conjugation | This product is unconjugated. Conjugation is available via our Antibody Conjugation Services. |
| Immunogen | purified human placental CD47 |
| Reported Applications |
in vivo CD47 blockade in vitro CD47 blocking Immunofluorescence |
| Formulation |
PBS, pH 7.0 Contains no stabilizers or preservatives |
| Endotoxin |
<2EU/mg (<0.002EU/μg) Determined by LAL gel clotting assay |
| Purity |
>95% Determined by SDS-PAGE |
| Sterility | 0.2 µm filtration |
| Production | Purified from cell culture supernatant in an animal-free facility |
| Purification | Protein G |
| RRID | AB_2687806 |
| Molecular Weight | 150 kDa |
| Storage | The antibody solution should be stored at the stock concentration at 4°C. Do not freeze. |
Additional Formats
Recommended Products
-
Recommended Isotype Control(s)
InVivoMAb mouse IgG1 isotype control, unknown specificity
-
Recommended Dilution Buffer
InVivoPure pH 7.0 Dilution Buffer
in vivo CD47 blockade, in vitro CD47 blockade
Kojima, Y., et al. (2016). "CD47-blocking antibodies restore phagocytosis and prevent atherosclerosis" Nature. DOI : 10.1038/nature18935. PubMed
Atherosclerosis is the disease process that underlies heart attack and stroke. Advanced lesions at risk of rupture are characterized by the pathological accumulation of diseased vascular cells and apoptotic cellular debris. Why these cells are not cleared remains unknown. Here we show that atherogenesis is associated with upregulation of CD47, a key anti-phagocytic molecule that is known to render malignant cells resistant to programmed cell removal, or ‘efferocytosis’. We find that administration of CD47-blocking antibodies reverses this defect in efferocytosis, normalizes the clearance of diseased vascular tissue, and ameliorates atherosclerosis in multiple mouse models. Mechanistic studies implicate the pro-atherosclerotic factor TNF-alpha as a fundamental driver of impaired programmed cell removal, explaining why this process is compromised in vascular disease. Similar to recent observations in cancer, impaired efferocytosis appears to play a pathogenic role in cardiovascular disease, but is not a fixed defect and may represent a novel therapeutic target.
in vivo CD47 blockade, in vitro CD47 blockade, Immunofluorescence
Willingham, S. B., et al. (2012). "The CD47-signal regulatory protein alpha (SIRPa) interaction is a therapeutic target for human solid tumors" Proc Natl Acad Sci U S A 109(17): 6662-6667. PubMed
CD47, a “don’t eat me” signal for phagocytic cells, is expressed on the surface of all human solid tumor cells. Analysis of patient tumor and matched adjacent normal (nontumor) tissue revealed that CD47 is overexpressed on cancer cells. CD47 mRNA expression levels correlated with a decreased probability of survival for multiple types of cancer. CD47 is a ligand for SIRPalpha, a protein expressed on macrophages and dendritic cells. In vitro, blockade of CD47 signaling using targeted monoclonal antibodies enabled macrophage phagocytosis of tumor cells that were otherwise protected. Administration of anti-CD47 antibodies inhibited tumor growth in orthotopic immunodeficient mouse xenotransplantation models established with patient tumor cells and increased the survival of the mice over time. Anti-CD47 antibody therapy initiated on larger tumors inhibited tumor growth and prevented or treated metastasis, but initiation of the therapy on smaller tumors was potentially curative. The safety and efficacy of targeting CD47 was further tested and validated in immune competent hosts using an orthotopic mouse breast cancer model. These results suggest all human solid tumor cells require CD47 expression to suppress phagocytic innate immune surveillance and elimination. These data, taken together with similar findings with other human neoplasms, show that CD47 is a commonly expressed molecule on all cancers, its function to block phagocytosis is known, and blockade of its function leads to tumor cell phagocytosis and elimination. CD47 is therefore a validated target for cancer therapies.
Immunofluorescence
Han, X., et al. (2000). "CD47, a ligand for the macrophage fusion receptor, participates in macrophage multinucleation" J Biol Chem 275(48): 37984-37992. PubMed
The macrophage fusion receptor (MFR), also called P84/BIT/SIRPalpha/SHPS-1, is a transmembrane glycoprotein that belongs to the superfamily of immunoglobulins. Previously, we showed that MFR expression is highly induced at the onset of fusion in macrophages, and that MFR appears to play a role in macrophage-macrophage adhesion/fusion leading to multinucleation. The recent finding that IAP/CD47 acts as a ligand for MFR led us to hypothesize that it interacts with CD47 at the onset of cell-cell fusion. CD47 is a transmembrane glycoprotein, which, like MFR, belongs to the superfamily of immunoglobulins. We show that macrophages express the hemopoietic form of CD47, the expression of which is induced at the onset of fusion, but to a lower level than MFR. A glutathione S-transferase CD47 fusion protein engineered to contain the extracellular domain of CD47, binds macrophages, associates with MFR, and prevents multinucleation. CD47 and MFR associate via their amino-terminal immunoglobulin variable domain. Of the nine monoclonal antibodies raised against the extracellular domain of CD47, three block fusion, as well as MFR-CD47 interaction, whereas the others have no effect. Together, these data suggest that CD47 is involved in macrophage multinucleation by virtue of interacting with MFR during adhesion/fusion.
1 Citation Images
Effective extracellular payload release and immunomodulatory interactions govern the therapeutic effect of trastuzumab deruxtecan (T-DXd).
In Nature Communications on 2 April 2025 by Tsao, L. C., Wang, J. S., et al.
Trastuzumab deruxtecan (T-DXd) is an antibody-drug conjugate (ADC) targeting HER2, exhibiting significant clinical efficacy in breast cancer (BC) with varying HER2 expression, including HER2-low and HER2-ultralow. However, the precise mechanism underlying its efficacy and the contribution of immune activation in these settings remain unclear. Here, we demonstrate that T-DXd efficacy in HER2-low and HER2-negative BC is independent of HER2 engagement and ADC internalization. Instead, its activity relies on extracellular proteases, such as cathepsin L (CTSL), within the tumor microenvironment. Irrespective of their HER2 status, tumor and stromal compartments of invasive BC abundantly express CTSL, which efficiently cleaves the specialized linker of T-DXd, facilitating payload release and inducing cytotoxicity against HER2-low/negative tumors. In HER2-positive BC, the antibody backbone of T-DXd engages Fcγ-receptors and drives antibody-dependent cellular phagocytosis (ADCP). Concurrently, its cytotoxic payload (DXd) induces immunogenic cell death, further activating myeloid cells via TLR4 and STING pathways to enhance tumor antigen presentation to CD8+ T cells. Notably, T-DXd cytotoxicity also upregulates tumor CD47 expression, dampening immune activation. Combining T-DXd with CD47 checkpoint blockade significantly enhances anti-tumor immune responses in a HER2-transgenic BC mouse model, while also inducing durable CD8+ T cell memory to prevent tumor recurrence after therapy cessation. © 2025. The Author(s).
- Cancer Research,
- Immunology and Microbiology
AFP shields hepatocellular carcinoma from macrophage phagocytosis by regulating HuR-mediated CD47 translocation in cellular membrane.
In Translational Oncology on 1 February 2025 by Pan, Y., Yin, Q., et al.
Alpha fetoprotein(AFP) overexpression connecting with macrophage dysfunction remain poorly defined. In this study, explore AFP regulates macrophage immunomodulation in hepatocellular carcinoma(HCC) through comprehensive in vitro and in vivo studies. Immunohistochemical and immunofluorescence staining was used to analyze the relativity of AFP and cellular membrane CD47 expression in clinical 30 HCC tissues, and the expression of AFP and CD47 in HCC cells. The intelligent living-cell high-throughput imaging analyzer was applied to dynamically track and image of macrophages to phagocytize HCC cells. The effect of AFP on regulating the level of CD47 in cellular membrane and growth of tumor in vivo was performed by animal experiment. The association of AFP and CD47 in HCC cells was detected by single cell analysis. The present results indicated that AFP upregulated the localization of CD47 on the HCC cell surface. CD47 overexpression stimulates HCC to escape immune surveillance by transmitting "don't eat me" signals to macrophages, lead to inhibit macrophage to phagocytize HCC cells. Mechanistically, the results demonstrated that AFP enhanced CD47 membrane translocation by interacting with Hu-Antigen R(HuR), an RNA-binding protein that regulates mRNA stability and translation. AFP alters the subcellular distribution of HuR, increasing its cytoplasmic accumulation and binding to CD47 transcript. AFP enhanced CD47 membrane translocation by interacting with HuR. These findings proved that AFP could inhibit macrophage to phagocytize HCC cells by upregulating the localization of CD47 on the HCC cell surface. Combination of AFP with CD47 blockade may be a potential therapeutic strategy for HCC treatment. Copyright © 2024. Published by Elsevier Inc.
- Cancer Research,
- Immunology and Microbiology
CD47 predominates over CD24 as a macrophage immune checkpoint in cancer
Preprint on BioRxiv : the Preprint Server for Biology on 26 November 2024 by Allen, J., Meglan, A., et al.
ABSTRACT Macrophages hold tremendous promise as effectors of cancer immunotherapy, but the best strategies to provoke these cells to attack tumors remain unknown. Here, we evaluated the therapeutic potential of targeting two distinct macrophage immune checkpoints: CD47 and CD24. We found that antibodies targeting these antigens could elicit maximal levels of phagocytosis when combined together in vitro. However, to our surprise, via unbiased genome-wide CRISPR screens, we found that CD24 primarily acts as a target of opsonization rather than an immune checkpoint. In a series of in vitro and in vivo genetic validation studies, we found that CD24 was neither necessary nor sufficient to protect cancer cells from macrophage phagocytosis in most mouse and human tumor models. Instead, anti-CD24 antibodies exhibit robust Fc-dependent activity, and as a consequence, they cause significant on-target hematologic toxicity in mice. To overcome these challenges and leverage our findings for therapeutic purposes, we engineered a collection of 77 novel bispecific antibodies that bind to a tumor antigen with one arm and engage macrophages with the second arm. We discovered multiple novel bispecifics that maximally activate macrophage-mediated cytotoxicity and reduce binding to healthy blood cells, including bispecifics targeting macrophage immune checkpoint molecules in combination with EGFR, TROP2, and CD71. Overall, our findings indicate that CD47 predominates over CD24 as a macrophage immune checkpoint in cancer, and that the novel bispecifics we created may be optimal immunotherapies to direct myeloid cells to eradicate solid tumors.
- Immunology and Microbiology
An Engineered Self-biomineralized Oncolytic Adenovirus Induces Effective Antitumor Immunity and Synergizes With Immune Checkpoint Blockade.
In Cancer Immunology Research on 4 November 2024 by Wang, S., Yang, X., et al.
Oncolytic adenoviruses (oADV) are promising cancer treatment agents. However, in vivo hepatic sequestration and the host immunologic response against the agents limit the therapeutic potential of oADVs. In this study, we present a combined method with a rational design for improving oADV infection efficiency, immunogenicity, and treatment efficacy by self-biomineralization. We integrated the biomimetic nucleopeptide W6p into the capsid of oADV using reverse genetics, allowing calcium phosphate mineralization to be biologically induced on the surface of oADV under physiologic conditions, resulting in a mineral exterior. This self-biomineralized, modified oADV (oADV-W6-CaP) enhanced infection efficiency and therapeutic efficacy in coxsackievirus and adenovirus receptor (CAR)-negative cancer cells wherein protecting them against neutralization by preexisting neutralizing antibodies. In subcutaneous mouse tumor models, systemic injection of oADV-W6-CaP demonstrated improved antitumor effectiveness, which was associated with increased T-cell infiltration and CD8+ T-cell activation. In addition, the anticancer immune response elicited by oADV-W6-CaP was dependent on CD8+ T cells, which mediated long-term immunologic memory and systemic antitumor immunity against the same tumor. Finally, the addition of PD1 or CD47 inhibition boosted the anticancer effects of oADV-W6-CaP and increased the rate of complete tumor clearance in tumor-bearing animals. The self-biomineralized oADV shifted the suppressive tumor microenvironment from a "cold" to "hot" state and synergized with immune checkpoint blockade to exert outstanding tumoricidal effects, demonstrating promising potential for cancer immunotherapy. ©2024 The Authors; Published by the American Association for Cancer Research.
- Cancer Research,
- Immunology and Microbiology
Antibody nanoparticle conjugate-based targeted immunotherapy for non-small cell lung cancer.
In Science Advances on 14 June 2024 by Saha, T., Fojtu, M., et al.
The use of immune checkpoint inhibitors, which activate T cells, is a paradigm shift in the treatment of non-small cell lung cancer. However, the overall response remains low. To address this limitation, here we describe a novel platform, termed antibody-conjugated drug-loaded nanotherapeutics (ADN), which combines immunotherapy and molecularly targeted therapy. An ADN was designed with an anti-CD47 and anti-programmed death ligand 1 (PDL1) antibody pair on the surface of the nanoparticle and a molecularly targeted inhibitor of the PI3K (phosphatidylinositol 3-kinase)/AKT/mTOR (mammalian target of rapamycin) pathway, PI103, entrapped in the nanoparticle. The anti-CD47-PDL1-ADN exhibited greater antitumor efficacy than current treatment options with a PDL1 inhibitor in vivo in an aggressive lung cancer immunocompetent mouse model. Dual antibody-drug-loaded nanotherapeutics can emerge as an attractive platform to improve outcomes with cancer immunotherapy.
- Cancer Research,
- Immunology and Microbiology,
- FC/FACS

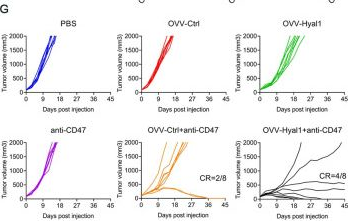

An oncolytic vaccinia virus encoding hyaluronidase reshapes the extracellular matrix to enhance cancer chemotherapy and immunotherapy.
In Journal for Immunotherapy of Cancer on 7 March 2024 by Wang, S., Li, Y., et al.
The redundant extracellular matrix (ECM) within tumor microenvironment (TME) such as hyaluronic acid (HA) often impairs intratumoral dissemination of antitumor drugs. Oncolytic viruses (OVs) are being studied extensively for cancer therapy either alone or in conjunction with chemotherapy and immunotherapy. Here, we designed a novel recombinant vaccinia virus encoding a soluble version of hyaluronidase Hyal1 (OVV-Hyal1) to degrade the HA and investigated its antitumor effects in combination with chemo drugs, polypeptide, immune cells, and antibodies. We constructed a recombinant oncolytic vaccinia virus encoding the hyaluronidase, and investigated its function in remodeling the ECM of the TME, the antitumor efficacy both in vitro and in several murine solid tumors either alone, or in combination with chemo drugs including doxorubicin and gemcitabine, with polypeptide liraglutide, with immune therapeutics such as PD-L1/PD-1 blockade, CD47 antibody, and with CAR-T cells. Compared with control OVV, intratumoral injection of OVV-Hyal1 showed superior antitumor efficacies in a series of mouse subcutaneous tumor models. Moreover, HA degradation by OVV-Hyal1 resulted in increased intratumoral dissemination of chemo drugs, infiltration of T cells, NK cells, macrophages, and activation of CD8+ T cells. When OVV-Hyal1 was combined with some antitumor therapeutics, for example, doxorubicin, gemcitabine, liraglutide, anti-PD-1, anti-CD47 blockade, or CAR-T cells, more profound therapeutic outcomes were obtained. OVV-Hyal1 effectively degrades HA to reshape the TME, therefore overcoming some major hurdles in current cancer therapy, such as limited OVs spread, unfavored dissemination of chemo drugs, polypeptides, antibodies, and insufficient infiltration of effector immune cells. OVV-Hyal1 holds the promise to improve the antitumor outcomes of current cancer therapeutics. © Author(s) (or their employer(s)) 2024. Re-use permitted under CC BY-NC. No commercial re-use. See rights and permissions. Published by BMJ.
- Immunology and Microbiology
Glioblastoma extracellular vesicles modulate immune PD-L1 expression in accessory macrophages upon radiotherapy.
In IScience on 16 February 2024 by Schweiger, M. W., Amoozgar, Z., et al.
Glioblastoma (GBM) is the most aggressive brain tumor, presenting major challenges due to limited treatment options. Standard care includes radiation therapy (RT) to curb tumor growth and alleviate symptoms, but its impact on GBM is limited. In this study, we investigated the effect of RT on immune suppression and whether extracellular vesicles (EVs) originating from GBM and taken up by the tumor microenvironment (TME) contribute to the induced therapeutic resistance. We observed that (1) ionizing radiation increases immune-suppressive markers on GBM cells, (2) macrophages exacerbate immune suppression in the TME by increasing PD-L1 in response to EVs derived from GBM cells which is further modulated by RT, and (3) RT increases CD206-positive macrophages which have the most potential in inducing a pro-oncogenic environment due to their increased uptake of tumor-derived EVs. In conclusion, RT affects GBM resistance by immuno-modulating EVs taken up by myeloid cells in the TME. © 2024 The Authors.
- Cancer Research
CXCR2 inhibition in G-MDSCs enhances CD47 blockade for melanoma tumor cell clearance.
In Proceedings of the National Academy of Sciences of the United States of America on 30 January 2024 by Banuelos, A., Zhang, A., et al.
The use of colony-stimulating factor-1 receptor (CSF1R) inhibitors has been widely explored as a strategy for cancer immunotherapy due to their robust depletion of tumor-associated macrophages (TAMs). While CSF1R blockade effectively eliminates TAMs from the solid tumor microenvironment, its clinical efficacy is limited. Here, we use an inducible CSF1R knockout model to investigate the persistence of tumor progression in the absence of TAMs. We find increased frequencies of granulocytic myeloid-derived suppressor cells (G-MDSCs) in the bone marrow, throughout circulation, and in the tumor following CSF1R deletion and loss of TAMs. We find that G-MDSCs are capable of suppressing macrophage phagocytosis, and the elimination of G-MDSCs through CXCR2 inhibition increases macrophage capacity for tumor cell clearance. Further, we find that combination therapy of CXCR2 inhibition and CD47 blockade synergize to elicit a significant anti-tumor response. These findings reveal G-MDSCs as key drivers of tumor immunosuppression and demonstrate their inhibition as a potent strategy to increase macrophage phagocytosis and enhance the anti-tumor efficacy of CD47 blockade in B16-F10 melanoma.
- Immunology and Microbiology
Practical Mouse Model to Investigate Therapeutics for Staphylococcusaureus Contaminated Surgical Mesh Implants.
In The Journal of Surgical Research on 1 March 2023 by Collins, M. M., Race, B., et al.
PubMed
The use of prosthetic mesh in hernia repair provides a powerful tool to increase repair longevity, decrease recurrence rates, and facilitate complex abdominal wall reconstruction. Overall infection rates with mesh are low, but for those affected there is high morbidity and economic cost. The availability of a practicable small animal model would be advantageous for the preclinical testing of prophylactics, therapeutics, and new biomaterials. To this end, we have developed a novel mouse model for implantation of methicillin-resistant Staphylococcus aureus-infected surgical mesh and provide results from antibiotic and immunotherapeutic testing. Implantation of surgical mesh between fascial planes of the mouse hind limb was used to approximate hernia repair in humans. Surgical mesh was inoculated with methicillin-resistant Staphylococcus aureus to test the efficacy of antibiotic therapy with daptomycin and/or immunotherapy to induce macrophage phagocytosis using antibody blockade of the CD47 "don't eat me" molecule. Clinical outcomes were assessed by daily ambulation scores of the animals and by enumeration of mesh-associated bacteria at predetermined end points. A single prophylactic treatment with daptomycin at the time of surgery led to improved ambulation scores and undetectable levels of bacteria in seven of eight mice by 21 days postinfection. Anti-CD47, an activator of macrophage phagocytosis, was ineffective when administered alone or in combination with daptomycin treatment. Ten days of daily antibiotic therapy begun 3 days after infection was ineffective at clearing infection. This fast and simple model allows rapid in vivo testing of novel antimicrobials and immunomodulators to treat surgical implant infections. Published by Elsevier Inc.
- Cancer Research,
- Immunology and Microbiology
Immunological conversion of solid tumours using a bispecific nanobioconjugate for cancer immunotherapy.
In Nature Nanotechnology on 1 December 2022 by Lu, Y., Huntoon, K., et al.
PubMed
Solid tumours display a limited response to immunotherapies. By contrast, haematological malignancies exhibit significantly higher response rates to immunotherapies as compared with solid tumours. Among several microenvironmental and biological disparities, the differential expression of unique immune regulatory molecules contributes significantly to the interaction of blood cancer cells with immune cells. The self-ligand receptor of the signalling lymphocytic activation molecule family member 7 (SLAMF7), a molecule that is critical in promoting the body's innate immune cells to detect and engulf cancer cells, is expressed nearly exclusively on the cell surface of haematologic tumours, but not on solid ones. Here we show that a bispecific nanobioconjugate that enables the decoration of SLAMF7 on the surface of solid tumours induces robust phagocytosis and activates the phagocyte cyclic guanosine monophosphate-adenosine monophosphate synthase-stimulator of interferon genes (cGAS-STING) pathway, sensitizing the tumours to immune checkpoint blockade. Our findings support an immunological conversion strategy that uses nano-adjuvants to improve the effectiveness of immunotherapies for solid tumours. © 2022. The Author(s), under exclusive licence to Springer Nature Limited.
CD47-SIRPα axis blockade in NASH promotes necroptotic hepatocyte clearance by liver macrophages and decreases hepatic fibrosis.
In Science Translational Medicine on 23 November 2022 by Shi, H., Wang, X., et al.
PubMed
Necroptosis contributes to hepatocyte death in nonalcoholic steatohepatitis (NASH), but the fate and roles of necroptotic hepatocytes (necHCs) in NASH remain unknown. We show here that the accumulation of necHCs in human and mouse NASH liver is associated with an up-regulation of the "don't-eat-me" ligand CD47 on necHCs, but not on apoptotic hepatocytes, and an increase in the CD47 receptor SIRPα on liver macrophages, consistent with impaired macrophage-mediated clearance of necHCs. In vitro, necHC clearance by primary liver macrophages was enhanced by treatment with either anti-CD47 or anti-SIRPα. In a proof-of-concept mouse model of inducible hepatocyte necroptosis, anti-CD47 antibody treatment increased necHC uptake by liver macrophages and inhibited markers of hepatic stellate cell (HSC) activation, which is responsible for liver fibrogenesis. Treatment of two mouse models of diet-induced NASH with anti-CD47, anti-SIRPα, or AAV8-H1-shCD47 to silence CD47 in hepatocytes increased the uptake of necHC by liver macrophages and decreased markers of HSC activation and liver fibrosis. Anti-SIRPα treatment avoided the adverse effect of anemia found in anti-CD47-treated mice. These findings provide evidence that impaired clearance of necHCs by liver macrophages due to CD47-SIRPα up-regulation contributes to fibrotic NASH, and suggest therapeutic blockade of the CD47-SIRPα axis as a strategy to decrease the accumulation of necHCs in NASH liver and dampen the progression of hepatic fibrosis.
- Cardiovascular biology
Comparative efficacy and mechanism of action of cardiac progenitor cells after cardiac injury.
In IScience on 19 August 2022 by Gunasekaran, M., Mishra, R., et al.
PubMed
Successful cell therapy requires cells to resist the hostile ischemic myocardium, be retained to continue secreting cardioprotective growth factors/exosomes, and resist immunological host responses. Clinically relevant stem/progenitor cells in a rodent model of acute myocardial infarction (MI) demonstrated that neonatal cardiac mesenchymal stromal cells (nMSCs) provide the most robust cardiac functional recovery. Transplanted nMSCs significantly increased the number of tissue reparative macrophages and regulatory T-cells and decreased monocyte-derived inflammatory macrophages and neutrophils in the host myocardium. mRNA microarray and single-cell analyses combined with targeted depletion studies established CD47 in nMSCs as a key molecule responsible for cell retention in the myocardium through an antiphagocytic mechanism regulated by miR34a-5p. Gain and loss-of-function studies demonstrated that miR34a-5p also regulated the production of exosomes and cardioprotective paracrine factors in the nMSC secretome. In conclusion, miR34a-5p and CD47 play an important role in determining the composition of nMSCs' secretome and immune evasion, respectively. © 2022.
- Cancer Research,
- Immunology and Microbiology
Alpha-emitter radium-223 mediates STING-dependent pyroptosis to trigger robust tumor immunogenicity
Preprint on Research Square on 5 May 2022 by Yang, M., Cheng, C., et al.
PubMed
h4>Purpose: /h4> Radium-223 ( 223 Ra) is the first-in-class alpha-emitter to mediate tumor eradication, which radiation emitted from alpha-emitter are routinely regarded can reduce tumor burden by directly cleaving double-strand DNA and killing tumor cells. However, the immunogenic characteristics and various cell death modalities triggered by alpha-emitter are remain unclear. h4>Methods: /h4> We evaluated biological effects of 223 Ra in cancer cell lines and mice models by biological endpoints. Concurrently, we explored immunogenicity and cell death modalities triggered by 223 Ra and excavated its mechanisms of pyroptosis induction. Besides, synergistic effect with checkpoint blockade was also assessed. h4>Results: /h4> 223 Ra has efficient therapeutic antitumor effects, which examined by cell viability study, foci analysis for DNA damage, and tumor regression. We further demonstrated that irradiated cells released pro-inflammatory damage-associated molecular patterns (DAMPs), including surface-exposed calreticulin (CALR), released high mobility group protein B1 (HMGB1), and secreted heat shock protein 70 (HSP70), which actively shape tumor immunogenicity. Pyroptosis, an immunogenic cell death (ICD) accompanied by activation of inflammasome, was also found to play significant roles in the modulation of cancer progression under the therapeutic 223 Ra. Mechanically, this effect relies on 223 Ra-induced DNA damage, which activates the STING-mediated DNA sensing pathway, leading to NLRP3 inflammasome-dependent pyroptosis. When combined with anti-CD47 therapy, 223 Ra can trigger robust antitumor effect. h4>Conclusion: /h4> These findings highlight the tumor eradication effect of 223 Ra, which exhibit both direct antitumor effects and indirect immune-stimulating capabilities. Importantly, STING/NLRP3 axis has a crucial role in pyroptosis under the therapeutic 223 Ra, which may shed light on promising targets for therapeutic interventions.
- Immunology and Microbiology
SIRPα - CD47 axis regulates dendritic cell-T cell interactions and TCR activation during T cell priming in spleen.
In PLoS ONE on 13 April 2022 by Autio, A., Wang, H., et al.
PubMed
The SIRPα-CD47 axis plays an important role in T cell recruitment to sites of immune reaction and inflammation but its role in T cell antigen priming is incompletely understood. Employing OTII TCR transgenic mice bred to Cd47-/- (Cd47KO) or SKI mice, a knock-in transgenic animal expressing non-signaling cytoplasmic-truncated SIRPα, we investigated how the SIRPα-CD47 axis contributes to antigen priming. Here we show that adoptive transfer of Cd47KO or SKI Ova-specific CD4+ T cells (OTII) into Cd47KO and SKI recipients, followed by Ova immunization, elicited reduced T cell division and proliferation indices, increased apoptosis, and reduced expansion compared to transfer into WT mice. We confirmed prior reports that splenic T cell zone, CD4+ conventional dendritic cells (cDCs) and CD4+ T cell numbers were reduced in Cd47KO and SKI mice. We report that in vitro derived DCs from Cd47KO and SKI mice exhibited impaired migration in vivo and exhibited reduced CD11c+ DC proximity to OTII T cells in T cell zones after Ag immunization, which correlates with reduced TCR activation in transferred OTII T cells. These findings suggest that reduced numbers of CD4+ cDCs and their impaired migration contributes to reduced T cell-DC proximity in splenic T cell zone and reduced T cell TCR activation, cell division and proliferation, and indirectly increased T cell apoptosis.
- Immunology and Microbiology
Anti-CD47 antibody treatment attenuates liver inflammation and fibrosis in experimental non-alcoholic steatohepatitis models.
In Liver International : Official Journal of the International Association for the Study of the Liver on 1 April 2022 by Gwag, T., Ma, E., et al.
PubMed
With the epidemic burden of obesity and metabolic diseases, nonalcoholic fatty liver disease (NAFLD) including steatohepatitis (NASH) has become the most common chronic liver disease in the western world. NASH may progress to cirrhosis and hepatocellular carcinoma. Currently, no treatment is available for NASH. Therefore, finding a therapy for NAFLD/NASH is in urgent need. Previously we have demonstrated that mice lacking CD47 or its ligand thrombospondin1 (TSP1) are protected from obesity-associated NALFD. This suggests that CD47 blockade might be a novel treatment for obesity-associated metabolic disease. Thus, in this study, the therapeutic potential of an anti-CD47 antibody in NAFLD progression was determined. Both diet-induced NASH mouse model and human NASH organoid model were utilized in this study. NASH was induced in mice by feeding with diet enriched with fat, fructose and cholesterol (AMLN diet) for 20 weeks and then treated with anti-CD47 antibody or control IgG for 4 weeks. Body weight, body composition and liver phenotype were analysed. We found that anti-CD47 antibody treatment did not affect mice body weight, fat mass or liver steatosis. However, liver immune cell infiltration, inflammation and fibrosis were significantly reduced by anti-CD47 antibody treatment. In vitro data further showed that CD47 blockade prevented hepatic stellate cell activation and NASH progression in a human NASH organoid model. Collectively, these data suggest that anti-CD47 antibody might be a new therapeutic option for obesity-associated NASH and liver fibrosis. © 2022 John Wiley & Sons A/S . Published by John Wiley & Sons Ltd.
The pleiotropic benefits of statins include the ability to reduce CD47 and amplify the effect of pro-efferocytic therapies in atherosclerosis.
In Nat Cardiovasc Res on 1 March 2022 by Jarr, K. U., Ye, J., et al.
PubMed
The pleiotropic benefits of statins may result from their impact on vascular inflammation. The molecular process underlying this phenomenon is not fully elucidated. Here, RNA sequencing designed to investigate gene expression patterns following CD47-SIRPα inhibition identifies a link between statins, efferocytosis, and vascular inflammation. In vivo and in vitro studies provide evidence that statins augment programmed cell removal by inhibiting the nuclear translocation of NFκB1 p50 and suppressing the expression of the critical 'don't eat me' molecule, CD47. Statins amplify the phagocytic capacity of macrophages, and thus the anti-atherosclerotic effects of CD47-SIRPα blockade, in an additive manner. Analyses of clinical biobank specimens suggest a similar link between statins and CD47 expression in humans, highlighting the potential translational implications. Taken together, our findings identify efferocytosis and CD47 as pivotal mediators of statin pleiotropy. In turn, statins amplify the anti-atherosclerotic effects of pro-phagocytic therapies independently of any lipid-lowering effect.
- Cancer Research
Enhancing Fatty Acid Catabolism of Macrophages Within Aberrant Breast Cancer Tumor Microenvironment Can Re-establish Antitumor Function.
In Frontiers in Cell and Developmental Biology on 4 May 2021 by Gu, Y., Niu, X., et al.
PubMed
Triple-negative breast cancer (TNBC) remains an intractable challenge owing to its aggressive nature and lack of any known therapeutic targets. Macrophages play a crucial role in cancer promotion and poor prognosis within the tumor microenvironment (TME). The phagocytosis checkpoint in macrophages has broader implications for current cancer immunotherapeutic strategies. Here, we demonstrate the modulation in the antitumor activity of macrophages within the aberrant metabolic microenvironment of TNBC by metabolic intervention. The co-culture of macrophages with TNBC cell lines led to a decrease in both their phagocytic function and expression of interleukin (IL)-1β and inducible nitric oxide synthase (iNOS). The transcription of glycolysis and fatty acid (FA) catabolism-related factors was inhibited within the dysregulated tumor metabolic microenvironment. Enhancement of FA catabolism by treatment with the peroxisome proliferator-activated receptor-alpha (PPAR-α) agonist, fenofibrate (FF), could re-establish macrophages to gain their antineoplastic activity by activating the signal transducer and activator of transcription 1 (STAT1) signaling pathway and increasing ATP production by FA oxidation. The combination of fenofibrate and anti-CD47 therapy significantly inhibited tumor growth in a 4T1 tumor-bearing mouse model. In conclusion, the enhancement of FA catabolism of macrophages could re-establish them to resume antitumor activity in the TME. Anti-CD47 therapy combined with fenofibrate may serve as a novel and potential immunotherapeutic approach for the treatment of TNBC. Copyright © 2021 Gu, Niu, Yin, Wang, Yang, Yang, Zhang and Ji.
An Acquired and Endogenous Glycocalyx Forms a Bidirectional "Don't Eat" and "Don't Eat Me" Barrier to Phagocytosis.
In Current Biology : CB on 11 January 2021 by Imbert, P. R. C., Saric, A., et al.
PubMed
Macrophages continuously survey their environment in search of pathogens or apoptotic corpses or debris. Targets intended for clearance expose ligands that initiate their phagocytosis ("eat me" signals), while others avoid phagocytosis by displaying inhibitory ligands ("don't eat me" signals). We report that such ligands can be obscured by the glycosaminoglycans and glycoproteins that coat pathogenic as well as malignant phagocytic targets. In addition, a reciprocal barrier of self-synthesized or acquired glycocalyx components on the macrophage surface shrouds phagocytic receptors, curtailing their ability to engage particles. The coating layers of macrophages and their targets hinder phagocytosis by both steric and electrostatic means. Their removal by enzymatic means is shown to markedly enhance phagocytic efficiency. In particular, we show that the removal of mucins, which are overexpressed in cancer cells, facilitates their clearance. These results shed light on the physical barriers that modulate phagocytosis, which have been heretofore underappreciated. VIDEO ABSTRACT. Crown Copyright © 2020. Published by Elsevier Inc. All rights reserved.
- Cancer Research,
- Immunology and Microbiology
Selective SIRPα blockade reverses tumor T cell exclusion and overcomes cancer immunotherapy resistance.
In The Journal of Clinical Investigation on 2 November 2020 by Gauttier, V., Pengam, S., et al.
PubMed
T cell exclusion causes resistance to cancer immunotherapies via immune checkpoint blockade (ICB). Myeloid cells contribute to resistance by expressing signal regulatory protein-α (SIRPα), an inhibitory membrane receptor that interacts with ubiquitous receptor CD47 to control macrophage phagocytosis in the tumor microenvironment. Although CD47/SIRPα-targeting drugs have been assessed in preclinical models, the therapeutic benefit of selectively blocking SIRPα, and not SIRPγ/CD47, in humans remains unknown. We report a potent synergy between selective SIRPα blockade and ICB in increasing memory T cell responses and reverting exclusion in syngeneic and orthotopic tumor models. Selective SIRPα blockade stimulated tumor nest T cell recruitment by restoring murine and human macrophage chemokine secretion and increased anti-tumor T cell responses by promoting tumor-antigen crosspresentation by dendritic cells. However, nonselective SIRPα/SIRPγ blockade targeting CD47 impaired human T cell activation, proliferation, and endothelial transmigration. Selective SIRPα inhibition opens an attractive avenue to overcoming ICB resistance in patients with elevated myeloid cell infiltration in solid tumors.
- Cancer Research,
- Immunology and Microbiology
Tumoral and paratumoral NK cells and CD8+ T cells of esophageal carcinoma patients express high levels of CD47.
In Scientific Reports on 18 August 2020 by Strizova, Z., Vachtenheim, J., et al.
PubMed
In a limited number of human malignancies, anti-CD47 therapy leads to the rapid clearance of tumor cells by macrophages. In esophageal squamous cell carcinoma, anti-CD47 treatment has shown promising results in vitro. However, the CD47 expression pattern in tumor-infiltrating lymphocytes (TILs), which are associated with prolonged overall survival and serve as a positive prognostic factor, is largely unknown. In this study, a total of 36 tissue samples from the tumor, peritumoral tissue, and adjacent healthy esophageal tissue was obtained from 12 esophageal carcinoma (EC) patients, and the surface expression of CD47 was evaluated in natural killer (NK) cells, CD8+ T cells, and the nonlymphocyte cell fraction. We found that the proportions of the evaluated cells and their CD47-expressing populations were comparable across the analyzed tissue compartments. However, the proportions of CD47-expressing populations in the analyzed tissue compartments were significantly higher in NK cells and CD8+ T cells than in the nonlymphocyte cell fraction. Importantly, the intensity of CD47 staining was also significantly higher in the tested immune cells than in the nonlymphocyte cell fraction. High expression of CD47 in tissue-infiltrating NK cells and CD8+ T cells in EC patients can, therefore, affect the efficacy of anti-CD47 therapy in EC.
